Professional Imaging
EVF & Professional Imaging
Turning captured images into a clear, stable and dependable viewing field.
Supporting cameras, video cameras,industrialimaging equipment and professional electronicviewfinders with Micro-OLED displays,eyepiece optics, interface driving andsample validation.

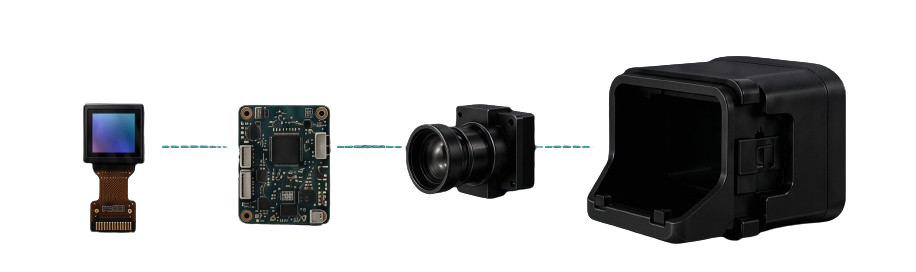

From Image Capture to Viewing Decisions
Image Sensor
Image Processing
Micro-OLED
EVF Eyepiece
EVF Eyepiece
For composition, focusing, shooting-parameter confirmation
and real-time image observation.

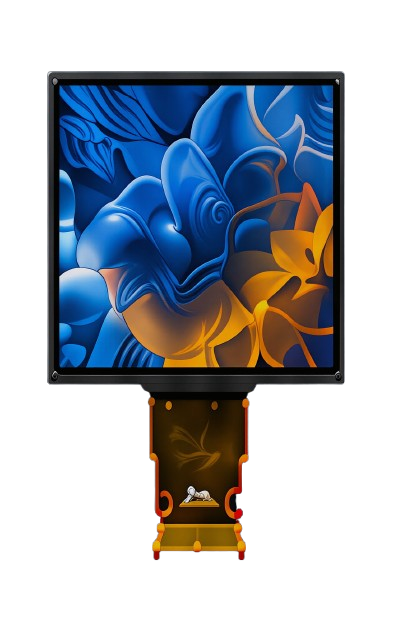

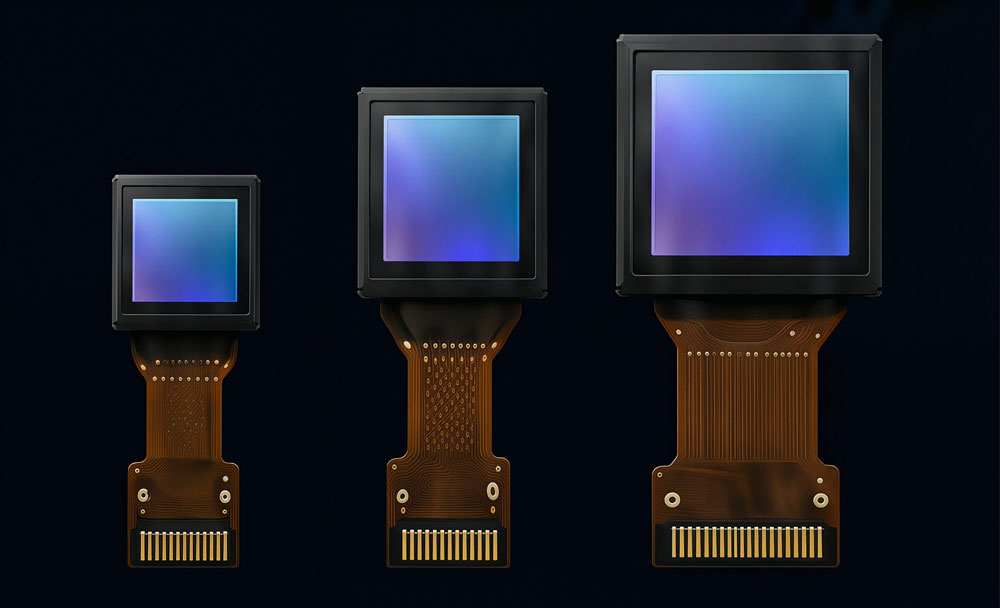

Recommended Displays
- 0.39"
- for compact EVF structures
- 0.49" / 0.50"
- balancing display area, clarity and mechanical space
- 0.60" / 0.61"
- for larger viewing images and professional imaging equipment
Note: Model selection confirmed by resolution, aspect ratio, brightness, video interface and sample status.
Integration Focus
DeviceType
Resolution & Aspect Ratio
Color Requirements
Ambient Brightness
EVF Optics
Host Interface
Installation Space
Covers display selection, board/interface adaptation, image-input testing,eyepiece configuration, image adjustment and sample validation.
EVF & Professional Imaging Solutions
Pengsheng Tech brings deep hardware-level integration and microdisplay calibration capabilities to Electronic Viewfinders (EVFs) and professional optical imaging systems.
In high-end cinematography, industrial inspection, and precision optical instruments, the EVF serves as the critical interface for frame composition, sharp focusing, telemetry verification, and real-time shot evaluation. Navigating the complete workflow—From Image Capture to Viewing Decisions—we seamlessly integrate Micro-OLED microdisplays, high-resolution EVF eyepieces, multi-protocol driver interface boards, and backend image processors.
Supporting mainstream and premium Micro-OLED formats—including 0.39″, 0.49″/0.50″, and 0.60″/0.61″—we provide closed-loop engineering services spanning display selection, interface bridging, panel bring-up, eyepiece optical alignment, color/image calibration, and full prototype validation. Our end-to-end support delivers clear, stable, zero-latency, and highly dependable display foundations for professional still cameras, cinema rigs, industrial vision systems, and precision electronic targeting optics.
Why Partner with Pengsheng Tech for EVF & Professional Imaging Solutions?
Professional imaging and industrial inspection leave zero margin for error. Minor color shifts, field distortion, blown-out highlights, crushed shadows, or frame-rate jitter can compromise focus and exposure decisions—leading to costly production retakes or inspection misjudgments.
Traditional viewfinder integration relies on piecemeal sourcing: acquiring display panels from Vendor A, eyepieces from Vendor B, and driver boards from Vendor C. This fragmented approach frequently triggers hidden engineering risks, including interface protocol mismatches, color gamut distortion, insufficient eye relief leading to edge blur, and thermal-drift noise under high-brightness operation.
At Pengsheng Tech, we understand the signal handoff between front-end image sensors and back-end Micro-OLED displays. Whether optimizing for intense outdoor ambient light, High Dynamic Range (HDR) capture, or high-frame-rate blur-free monitoring, we execute deep co-optimization across circuits, optics, and image processing algorithms.
Our Core Strengths in EVF & Professional Imaging Engineering
1. Multi-Format Micro-OLED Expertise
We maintain comprehensive engineering know-how across diverse Micro-OLED panel sizes, including 0.39″ (compact EVF designs), 0.49″/0.50″ (balanced footprint and active viewing area), and 0.60″/0.61″ (wide Field-of-View, high-PPD professional optics).
2. Eyepiece Optical Alignment & Factory Color Calibration

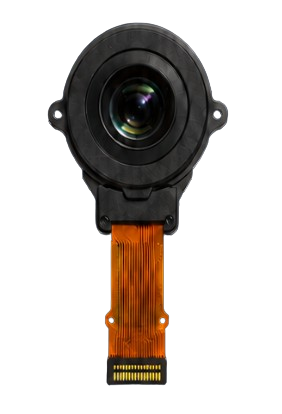

We fine-tune the optical center and Eye Relief parameters of EVF eyepiece assemblies to eliminate peripheral distortion and chromatic aberration, guaranteeing edge-to-edge clarity. To ensure faithful color reproduction for critical imaging and inspection tasks, we perform factory-level Gamma curve calibration and color temperature uniformity tuning.
3. Low-Latency Multi-Protocol Driving & Thermal Engineering

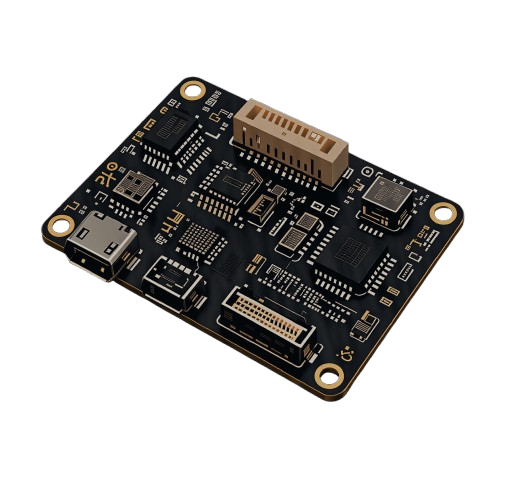

Our driver platforms seamlessly bridge MIPI, DisplayPort, and LVDS host protocols, delivering high-speed, lossless, and ultra-low-latency signal transmission directly to the microdisplay. Furthermore, we optimize power supply ripple and Electromagnetic Compatibility (EMC) while implementing robust thermal architectures to prevent heat-induced noise.
Key Business & Engineering Value for Clients
- Eliminate Cross-Module Integration Risks: Clients do not need to maintain costly internal electro-optical engineering teams. We resolve display bridging, optical alignment, and color calibration in-house, eliminating inter-module compatibility issues.
- Accelerate Form-Factor Selection: Driven by a thorough evaluation of device category, installation footprint, and target ambient brightness, we help clients rapidly select the optimal display size and optical pairing to prevent costly design revisions.
- Deliver Production-Ready Documentation: Along with validated sample prototypes, we provide complete driver schematics, eyepiece optical specification sheets, and factory test reports, providing reproducible empirical data to back volume manufacturing.
