Near-Eye Optical Integration
Near-Eye Optical Solutions
Centered on the display source, field of view, eye box,eye relief, brightness and available mechanical space,we provide near-eye optical matching and integration.

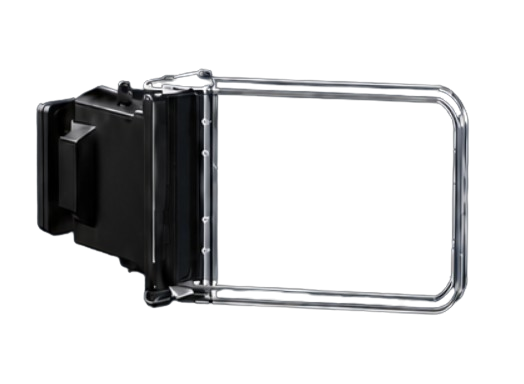

Waveguide Optical Solution
- Solution Model：DP-002 + OP-001
- Display Size：0.23"
- Display Resolution：640×400
- Optical Type：Waveguide
- Field of View：26°
- Virtual Image Size：Approx. 55"@3 m
- Transmittance：> 80%
- Entrance Pupil Brightness：0~700 nits
- Eye Box：10×8 mm
- Eye Relief：< 40 mm
- Distortion：< 2%
- Uniformity：> 80%
- Module Weight：< 13 g
- Application：Smart glasses, AR HUD, lightweight wearable devices
Pancake Optical Solution
- Solution Model：DP-012 + OP-002
- Display Size：0.71"
- Display Resolution：1920×1080
- Optical Type：Pancake
- Object Field：0.7" / Φ18.2 mm
- Field of View：±30°, Approx. 60°
- Focal Length：16.2 mm
- Magnification：15.4×
- F-number：3.2
- Exit Pupil Diameter：Φ5 mm
- Optical Track Length：18 mm
- Eye Relief：26.9 mm
- Distortion：≤ 1%
- Transmittance：> 90%
- Application：AR/VR/MR headsets, immersion displays, simulators, industrial metaverse display devices
