Shenzhen Pengsheng MicroVision Tech Co., Ltd.
02.PRODUCT CATEGORY · MICRO OLED DISPLAYS
Micro OLED Display Series
Covering compact display, observation display, FHD near-eye display and high-resolution project-based development. Five key recommended models spanning 0.23″ to 1.31″, all featuring full-color OLED with brightness up to 3000+ cd/m².
Display Size — Resolution Overview
DP-002
640×400
★
DP-004
1024×768
★
DP-005
1280×720
DP-007
1920×1080
★
DP-009
1280×1024
DP-012
1920×1080
★
DP-015
2048×2048
★
Full Color
MIPI DSI
TTL RGB
LVDS
3000+ cd/m²
Product Coverage Direction
Four Application Directions,
One Complete Lineup
From ultra-compact 0.23" modules to high-resolution 1.31" project platforms — every Micro OLED application scenario is covered by a dedicated, field-proven display configuration.
Compact Display
0.23" / 0.26"
Lightweight wearables · Compact display modules · Space-constrained projects
Compact
Observation Display
0.39" / 0.60" / 0.61"
Observation terminals · Night vision · Industrial eyepieces · Handheld devices
Observation
High-Definition FHD Display
0.55" / 0.71"
AR / VR · Industrial head-mounted · Medical observation · HD image display
FHD
High-Resolution Display
0.96" / 0.99" / 1.31" / 1.33"
High-end near-eye · Special optical systems · Project-based development
Hi-Res
17
Total Display Models
0.13" to 1.33"
0.13" to 1.33"
5★
Key Recommended
Models (Sample Available)
Models (Sample Available)
3000+
cd/m² Peak Brightness
All Key Models
All Key Models
4K
Maximum Resolution
3840×2160 (DP-017)
3840×2160 (DP-017)
16:9
to 1:1 Square
Full Aspect Ratio Range
Full Aspect Ratio Range
Full Product Overview
Micro OLED Display — Complete Series
All 17 display configurations across the full lineup. ★ marks the five primary recommended models with sample availability for rapid evaluation.
| Model No. | Size | Resolution | Ratio | Color | Interface | Status | Positioning | Detail | |
|---|---|---|---|---|---|---|---|---|---|
| PSMV-DP-001 | 0.13" | 640×480 | 4:3 | Mono Green | TBD | In Development | Micro mono display | View | |
| ★ | PSMV-DP-002 | 0.23" | 640×400 | 16:10 | Full Color | MIPI DSI D-PHY | Sample Available | Compact / Waveguide source | View |
| PSMV-DP-003 | 0.26" | 640×480 | 4:3 | Full Color | TTL RGB | Customizable | Micro display direction | View | |
| ★ | PSMV-DP-004 | 0.39" | 1024×768 | 4:3 | Full Color | TTL RGB | Sample Available | Observation / Night vision | View |
| PSMV-DP-005 | 0.49" | 1280×720 | 16:9 | Full Color | TTL RGB | Sample Available | Observation / Night / Industrial | View | |
| PSMV-DP-006 | 0.50" | 1280×960 | 4:3 | Full Color | TTL RGB | Confirm Required | 16:9 compact HD display | View | |
| ★ | PSMV-DP-007 | 0.55" | 1920×1080 | 16:9 | Full Color | MIPI DSI D-PHY + DSC | Customizable | High PPI · FHD direction | View |
| PSMV-DP-008 | 0.60" | 800×600 | 4:3 | Full Color | TTL RGB | Sample Available | Compact FHD display | View | |
| PSMV-DP-009 | 0.60" | 1280×1024 | 5:4 | Full Color | TTL RGB | Sample Available | Observation / Industrial | View | |
| PSMV-DP-010 | 0.61" | 1024×768 | 4:3 | Full Color | TTL RGB | Sample Available | High-res observation display | View | |
| PSMV-DP-011 | 0.61" | 1280×1024 | 5:4 | Full Color | TTL RGB | Sample Available | Observation / Industrial | View | |
| ★ | PSMV-DP-012 | 0.71" | 1920×1080 | 16:9 | Full Color | MIPI DSI D-PHY + DSC | Sample Available | FHD near-eye · Pancake source | View |
| PSMV-DP-013 | 0.96" | 1400×1050 | 4:3 | Full Color | 24bits LVDS | Customizable | FHD display / Pancake source | View | |
| PSMV-DP-014 | 0.99" | 2028×2048 | ~1:1 | Full Color | 24bits LVDS | Customizable | Medium-size high-res display | View | |
| ★ | PSMV-DP-015 | 1.31" | 2048×2048 | 1:1 | Full Color | MIPI-C/D PHY | Project-Based | Square high-res display | View |
| PSMV-DP-016 | 1.32" | 2560×2560 | 1:1 | Full Color | TBD | Project-Based | Hi-res project display | View | |
| PSMV-DP-017 | 1.33" | 3840×2160 | 16:9 | Full Color | TBD | Project-Based | 4K high-end display direction | View |
★ Key recommended models
● Sample Available
● Customizable
● Project-Based
Key Model Deep-Dive
Five Recommended Models — Full Specifications
Detailed specifications and typical applications for the five primary recommended Micro OLED display platforms.
KEY MODEL

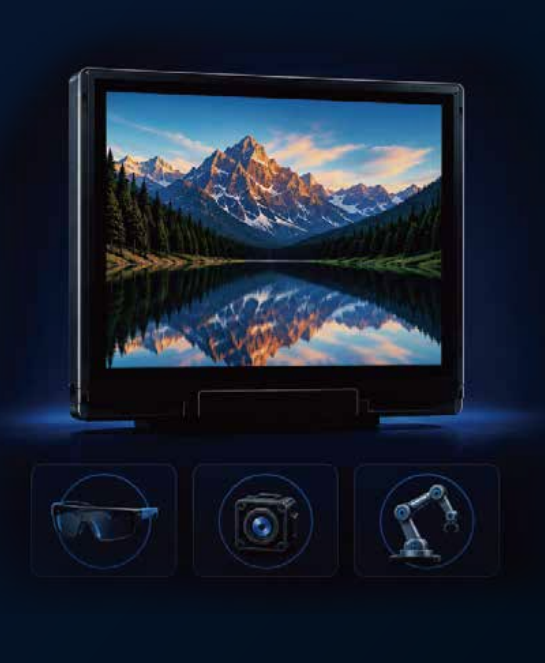

PSMV-DP-002 · Micro OLED Display
0.23" Micro OLED Display
Compact Near-Eye Display Platform
A compact display platform for micro near-eye display, lightweight wearable devices
and Waveguide optical modules. Ideal for AR glasses, smart firefighting helmets
and individual soldier information display.
Key Specifications
Resolution640 × 400
Aspect Ratio16:10
ColorFull Color
Brightness50–3000+ cd/m²
InterfaceMIPI DSI D-PHY
StatusSample Available
PositioningKey Model
Typical Applications
| Application | Description |
|---|---|
| Compact Near-Eye | Space-constrained small display modules |
| Lightweight Wearable | Glasses, headset, mini wearable devices |
| Waveguide AR | Waveguide AR display source |
| Smart Firefighting | Status, navigation, thermal & alert info |
KEY MODEL
PSMV-DP-004 · Micro OLED Display
0.39" Micro OLED Display
Observation & Night Vision Display Platform
A mature display platform for observation terminals, night vision display,
industrial eyepieces and handheld observation devices. Supports both
RGB888 and YCbCr422 input formats for infrared image compatibility.
Key Specifications
Resolution1024 × 768
Aspect Ratio4:3
ColorFull Color
Brightness50–3000+ cd/m²
InterfaceTTL RGB
Input FormatRGB888 / YCbCr422
Color Depth24bit / 16bit
StatusSample Available
Typical Applications
| Application | Description |
|---|---|
| Observation Terminal | Observation display, image rendering, info assist |
| Night Vision | Low-light, infrared or fusion image display |
| Industrial Eyepiece | Industrial inspection, device observation, visual aid |
KEY MODEL
PSMV-DP-007 · Micro OLED Display
0.55" 1920×1080 Micro OLED Display
Compact FHD Near-Eye Display Platform
A compact FHD display platform for near-eye display, HD image display and
multi-route optical expansion. Supports MIPI DSI D-PHY + DSC interface,
ideal for AR/VR, medical observation, and industrial head-mounted displays.
Key Specifications
Resolution1920 × 1080
Aspect Ratio16:9
ColorFull Color
Brightness50–3000+ cd/m²
InterfaceMIPI DSI D-PHY + DSC
StatusCustomization Available
PositioningKey Model
Typical Applications
| Application | Description |
|---|---|
| AR / VR Near-Eye | Compact FHD display, overlay & image |
| Medical Observation | HD image, data and auxiliary info display |
| Industrial Head-Mount | Device status, task prompt, remote collaboration |
| Multi-Route Optical | Pancake, Birdbath, See-through, Lens Group |
KEY MODEL
PSMV-DP-012 · Micro OLED Display
0.71" 1920×1080 Micro OLED Display
Mainstream FHD Near-Eye & VR Display Platform
A mainstream FHD display platform for near-eye display, VR display,
training simulation and Pancake optical modules. The primary display
source for 0.71" Pancake optical solutions.
Key Specifications
Resolution1920 × 1080
Aspect Ratio16:9
ColorFull Color
Brightness50–3000+ cd/m²
InterfaceMIPI DSI D-PHY + DSC
StatusSample Available
PositioningKey Model
Typical Applications
| Application | Description |
|---|---|
| VR Display | FHD near-eye display, immersive visuals |
| Pancake Optical | 0.71" Pancake optical solution source |
| HD Near-Eye | Image, video, UI, text and data overlay |
| Training / Industrial HMD | Simulation training, device status, remote collab |
KEY MODEL
PSMV-DP-015 · Micro OLED Display
1.31" 2048×2048 Micro OLED Display
High-Resolution Project-Based Display Platform
A project-based display platform for high-resolution near-eye display,
advanced optical systems and custom development. 1:1 square aspect ratio
with 2048×2048 pixel grid, using MIPI-C/D PHY interface.
Key Specifications
Resolution2048 × 2048
Aspect Ratio1:1 (Square)
ColorFull Color
Brightness50–3000+ cd/m²
InterfaceMIPI-C/D PHY
Input FormatRGB888
Color Depth24bit / 16bit
StatusProject-Based
Typical Applications
| Application | Description |
|---|---|
| Hi-Res Near-Eye | Ultra-fine display, complex image & rich data |
| Advanced Optical Systems | Custom optical structure compatibility evaluation |
| Special Industry Display | High area, resolution & reliability requirements |
