01.PRODUCT CATEGORY · WAFER PLATFORM

Wafer Platform Resources

Micro OLED wafer platform resources with upstream technical evaluation support for special projects
Micro LED vs OLED
About This Category

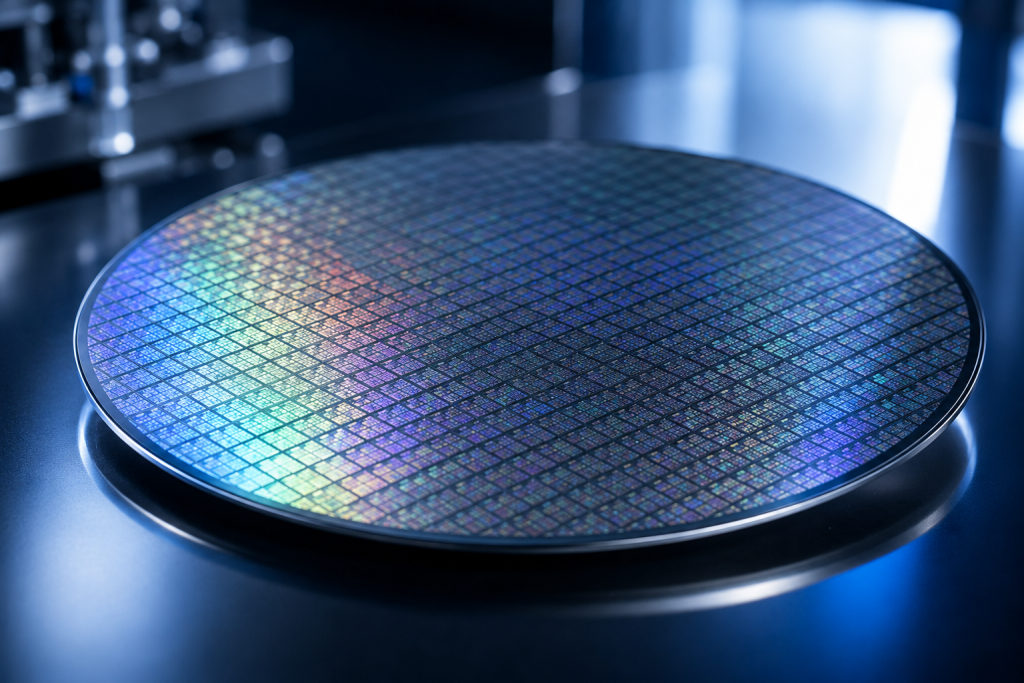

Micro OLED Wafer Platform Resources

Showcase upstream resources, platform understanding, and special-project technical evaluation

Pengsheng MicroVision not only provides Micro OLED displays, near-eye optical solutions, testing accessories and application solutions — we also hold a certain level of Micro OLED wafer platform resources and upstream technical collaboration capability.

For most customers, standard Micro OLED displays are sufficient for product selection, sample testing and solution verification needs. Wafer platform products are primarily used to showcase upstream resources, demonstrate platform understanding, and support technical evaluation for special projects.

Wafer Product Platform Display
Model No. Platform Size Resolution PPI Interface Process Positioning
PSMV-WF-001 VGA Wafer Platform 0.26" 640 × 480 3076 TTL RGB 110nm Compact Display Platform
PSMV-WF-002 XGA Wafer Platform 0.39" 1024 × 768 3257 TTL RGB 110nm Observation / Industrial Display
PSMV-WF-003 720P Wafer Platform 0.49" 1280 × 720 3034 TTL RGB 110nm 16:9 HD Display Platform
PSMV-WF-004 High-PPI Wafer Platform 0.50" 1280 × 960 3258 TTL RGB 70nm High PPI Display Platform
PSMV-WF-005 XGA Wafer Platform 0.61" 1024 × 768 2116 TTL RGB 110nm Observation / Industrial Display
PSMV-WF-006 2K Square Wafer Platform 0.99" 2048 × 2048 2940 24bits LVDS 110nm High-Res Square Display Platform
PSMV-WF-007 2.6K Square Wafer Platform 1.31" 2560 × 2560 2776 MIPI-C/D PHY 70nm High-End Project Display Platform
All platforms support Full Color OLED pixels 110nm Standard process 70nm Premium high-PPI process
