For connecting displays, boards, power and image-input equipment. Customizable based on length, interface and pinout requirements.
Overview (Model: PSMV-BK-004)
PSMV-BK-004 is a high-reliability interconnect cable and connector set designed specifically for silicon-based Micro-OLED evaluation hardware and custom optical assemblies. Engineered to ensure low-loss signal transmission and stable power distribution, it provides the essential hardware links connecting micro-display modules, controller boards, external power supplies, and video input sources.
Serving as a crucial accessory in laboratory bring-up, system prototyping, and evaluation kits (such as BK-006), PSMV-BK-004 prevents signal degradation and loose connections, ensuring reliable high-speed data flow for optical and electrical testing.
Micro-OLED High-Speed Interconnect Cable & Connector Set PSMV-BK-004
Key Technical Specifications
| Parameter | Specification | Functional Focus |
| Product Code | PSMV-BK-004 | Interconnect Hardware Accessory |
| Product Type | Cable & Connector Set (线材与连接器套件) | Full-system physical & electrical wiring |
| Signal Transmission | High-speed video & control signals | Low-attenuation differential routing |
| Primary Connections | Display Panel $\leftrightarrow$ Driver Board $\leftrightarrow$ Host | Multi-node system integration |
| Application Scope | Test bench, evaluation kits & prototypes | Reliable plug-and-play wiring |
Core Advantages & Features
- High-Integrity Signal Transmission
- Optimized shielding and pinout geometry to preserve high-frequency MIPI, LVDS, and RGB video signal integrity during test execution.
- Comprehensive Multi-Node Interconnect

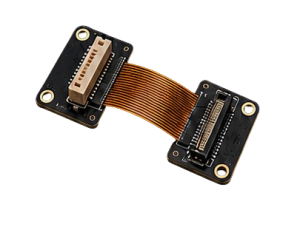

- Includes custom flexible printed circuit (FPC) harnesses, power lead wires, and multi-pin connectors to bridge all system hardware nodes seamlessly.
- Robust & Reusable Design
- Engineered for high durability against repeated mating cycles during laboratory evaluation and benchtop prototyping.
System Interconnect Roles
- Display Panel Link: Connects Micro-OLED FPC tails to driver or adapter boards.
- Control & Power Routing: Bridges driver/controller boards with external DC power supplies and debugging tools.
- Host Video Input: Interfaces signal source generators or application processors directly with the controller board.
