Industry Application Solution/ AS001
Eyepiece / Observation Application Solution
Supporting multiple eyepiece-module configurations around display size,magnification, field of view, eye relief and terminal structure.
C01-C07 I 7 Configurations

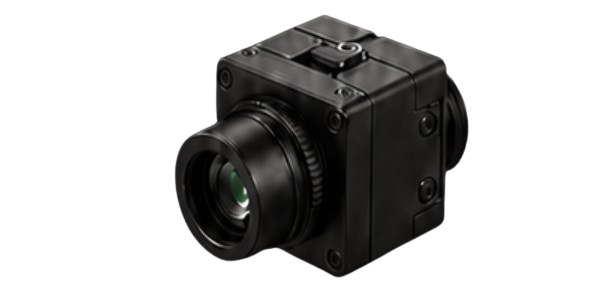

C01
Standard Observation
Display Size
0.39″
Magnification
14x
Diagonal Field of View
32.0°
Eye Relief
23mm

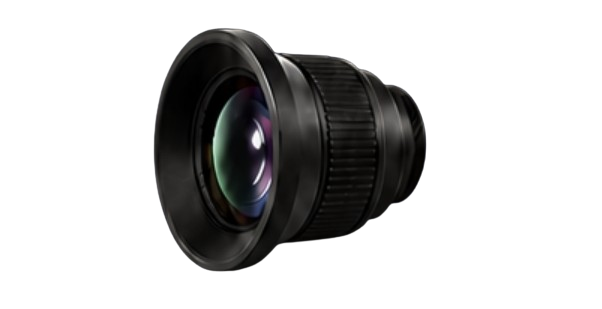

C02
Wide Field of View
Display Size
0.60″
Magnification
14x
Diagonal Field of View
46.2°
Eye Relief
19 mm

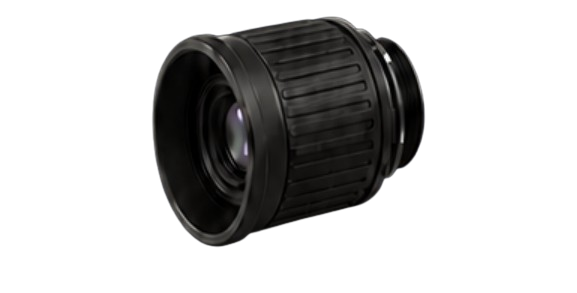

C03
High Magnification
Display Size
0.39″
Magnification
16x
Diagonal Field of View
32.0°
Eye Relief
22 mm

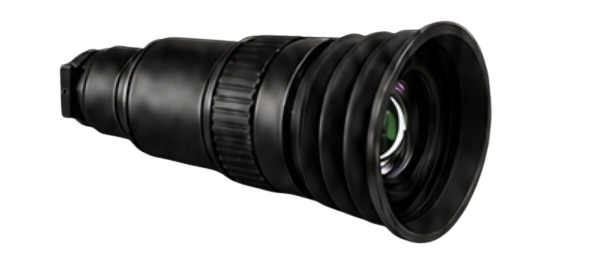

C04
Long Eye Relief
Display Size
0.39″
Magnification
14x
Diagonal Field of View
30.2°
Eye Relief
48mm

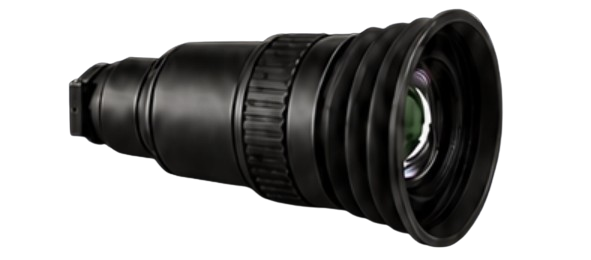

C05
Long Eye Relief
Display Size
0.39″
Magnification
14x
Diagonal Field of View
30.2°
Eye Relief
55mm

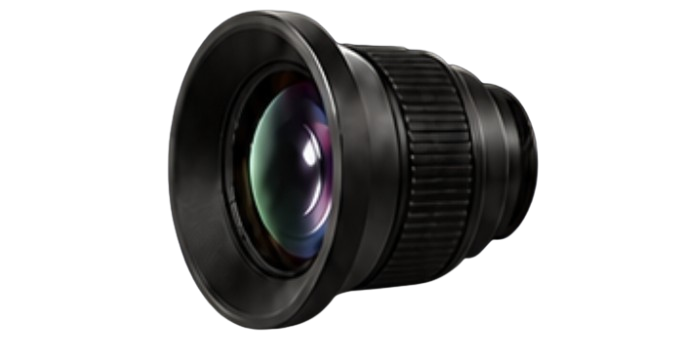

C06
Long Eye Relief / High Protection
Display Size
0.50″
Magnification
10x
Diagonal Field of View
28.5°
Eye Relief
55mm
Ingress Protection
IP67

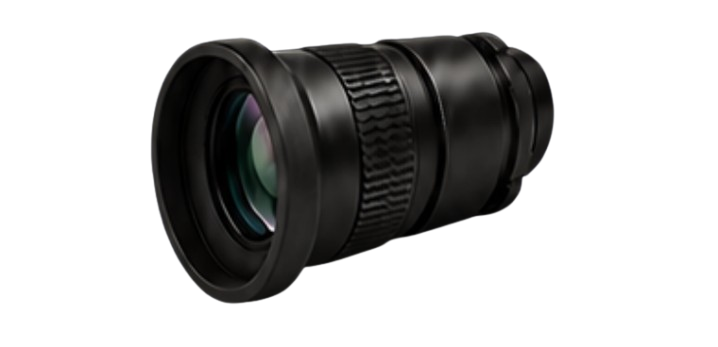

C01
Standard Observation
Display Size
0.6″
Magnification
10x
Diagonal Field of View
33.9°
Eye Relief
52mm
Ingress Protection
IP67
