Industry Application Solution/ AS005

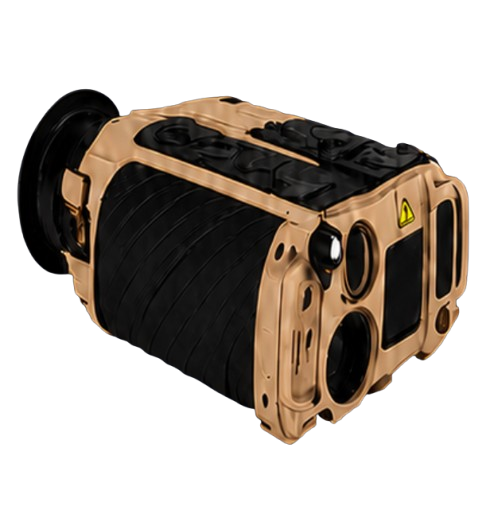

Smart Laser Ranging and Positioning Terminal
Integrating 8x optical magnification, 10 km-class laser ranging,multi-target measurement, positioning and data output.
Smart Laser Ranging and Positioning Terminal
Long-Range Observation | Ranging | Positioning | Data Transmission
Optics & Laser
ModelPSMV-AS-005
Magnification8×
Aperture33 mm
Field of View6°
Laser Wavelength1535 nm, Class 1
Ranging Performance
Maximum RangeLarge targets ≥ 10 km, vehicles ≥ 7 km
Minimum Range50 m
Ranging Accuracy±1 m
Measurement Rate1–10 Hz
Positioning & Angle Measurement
Self-Positioning Accuracy≤ ±3 m
Target Positioning Accuracy≤ 20 m
Azimuth Accuracy≤ 0.3°
Pitch / Roll Accuracy≤ 0.1°
Mechanical & Interfaces
Ingress ProtectionIP67
Operating Temperature–40°C to +60°C
Dimensions174 × 121 × 72 mm
Weight700 g
InterfacesDC / RS232 / HDMI
Imaging SensorInfrared / Low-Light CMOS
