Industry Application Solution/ AS002
Smart Firefighting Display Solution
A firefighting and rescue visualization solution based on Micro-OLEDnear-eye display, thermal imaging and wireless transmission.

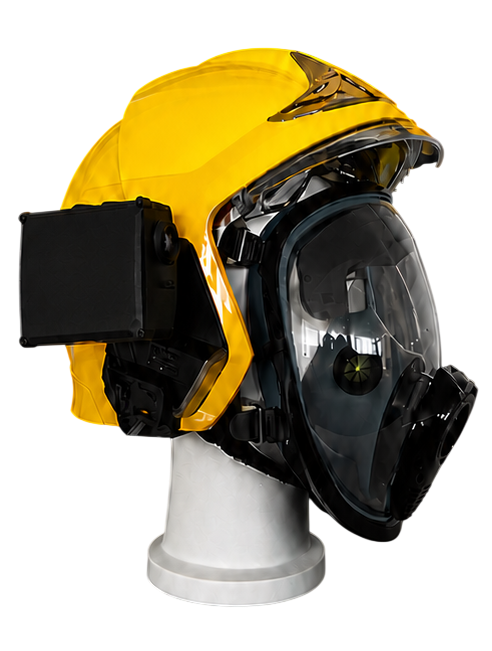

Smart Firefighting Helmet / Face Mask
Thermal Imaging + AR Information Overlay
Thermal Imaging
Operating SystemLinux
Thermal Imaging Resolution384×288
Thermal Imaging Frame Rate25 Hz
Spectral Range8–14 μm
NETD≤60 mK
AR Display
AR Display Resolution640×400 RGB
Transmittance85%
Ingress Protection RatingIP65
Communications
2.4 GHz Wireless FrequencyLine-of-sight ≥1000 m
Maximum Data Rate80 Mbps
Video640×480/HD, 1 Mbps, 25 Hz
Recommended System Configuration
Display Source
DP-002 |0.23″ Micro-OLED
Near-Eye Optics
OP-001| Waveguide
Testing Accessories
Matched to project requirements
Terminal Format
Helmet/Face Mask
