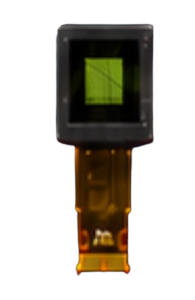

Product Overview (Model: PSMV-DP-002)
PSMV-DP-002 is an advanced, ultra-compact 0.23-inch full-color silicon-based Micro-OLED (OLEDoS) microdisplay module engineered for next-generation portable near-eye systems. Utilizing advanced single-crystal silicon CMOS backplane technology integrated with a high-efficiency white OLED emission layer and precision color filter array, it delivers vivid, high-resolution color imagery within an exceptionally miniature optical footprint.
Featuring a native resolution of 640 × 400 in a 16:10 aspect ratio, a dynamic adjustable luminance range of 50 to 3000 cd/m², and a high-speed MIPI DSI D-PHY video interface, the PSMV-DP-002 ensures seamless signal compatibility with modern application processors and low-power embedded video controllers. It serves as an ideal miniaturized display source platform for lightweight wearable devices, AR smart glasses, and see-through optical waveguide modules.
Key Technical Specifications
| Parameter | Specification | Notes / Description |
| Product Code | PSMV-DP-002 | Full-Color OLEDoS Display Module |
| Display Technology | Silicon-based Micro-OLED (OLEDoS) | Single-crystal CMOS Active Matrix |
| Diagonal Size | 0.23 inch | Ultra-compact near-eye format |
| Resolution | 640 × 400 (Wide VGA) | Sharp pixel layout |
| Aspect Ratio | 16:10 | Widescreen near-eye aspect ratio |
| Color Depth | Full Color | Enhanced color saturation & contrast |
| Luminance (Brightness) | 50 ~ 3000 cd/m² | Adjustable for indoor/outdoor visibility |
| Video Interface | MIPI DSI D-PHY | High-speed serial image data transmission |
| Operating Status | Sample Available / Key Model | Commercial & OEM prototyping grade |
Features & Technical Advantages
- Vivid Full-Color Imagery in Miniature Scale
- Combines sub-micron silicon pixel architecture with precision color filters to render crisp, vibrant, and high-contrast full-color graphics inside compact optical modules.
- High-Speed MIPI DSI D-PHY Interface
- Employs a standardized high-bandwidth serial interface, drastically reducing signal pin counts, EMI interference, and system motherboard complexity.
- Flexible High-Luminance Performance
- Offers a dynamic brightness range from 50 up to 3000 cd/m², ensuring exceptional outdoor legibility when coupled with optical waveguide engines.
- Ultra-Low Power & Low Latency
- Engineered for battery-operated portable systems with microsecond-level response times, completely eliminating motion blur during rapid head movements.
Target Applications
- Augmented Reality (AR) & Smart Glasses: Near-eye display engines, micro-projectors, and lightweight consumer/enterprise smart eyewear.
- Waveguide Optical Modules: Optical combiner integration for wide field-of-view (FOV) transparent displays.
- Smart Helmets & Soldier-Mounted Displays: Tactical heads-up displays (HUD), aviation helmet integration, and portable command terminals.
- Specialized Industrial & Emergency Gear: Firefighter smart helmet see-through information overlays and wearable diagnostic displays.
- Precision Targeting & Measurement: Laser rangefinder and positioning terminals with direct-view optical data display.
Recommended Matching Kit & Ecosystem
- Optical Engine: Compatible with PSMV-OP-001 Waveguide modules.
- Evaluation & Development: Supports PSMV-BK-007 Evaluation Board kit for rapid prototype validation and optical benchmarking.
