PSMV-DP-014 is a large-format, ultra-high-resolution 0.99-inch 2K × 2K full-color silicon-based Micro-OLED (OLEDoS) display engine engineered for high-immersion spatial computing and optical simulation systems. Delivering a 2048 × 2048 pixel array in a symmetrical 1:1 square aspect ratio, it provides exceptional peripheral visual coverage and pixel density to eliminate screen-door artifacts.
Equipped with a flexible, high-bandwidth MIPI C-PHY / D-PHY interface, the module effortlessly handles massive 4-megapixel video throughput while keeping power consumption low. With a luminance output of 2000 cd/m² and wide Field-of-View (FOV) optical alignment, PSMV-DP-014 serves as a flagship display platform for next-generation VR/MR head-mounted displays, professional flight simulators, and high-precision medical viewports.

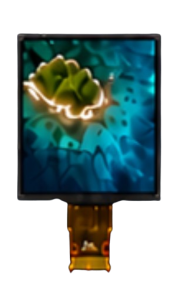

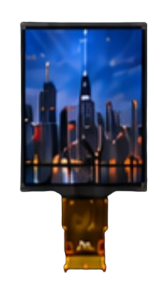

PSMV-DP-014 | 0.99″ 2K Ultra-HD 1:1 Full-Color OLEDoS Display
Key Technical Specifications
| Parameter | Specification | Engineering Focus |
| Product Code | PSMV-DP-014 | Ultra-HD Large-Format Display Core |
| Display Technology | Micro-OLED Display (OLEDoS) | Single-Crystal Silicon CMOS Architecture |
| Active Size | 0.99 inch | Large active viewport for immersive optics |
| Native Resolution | 2048 × 2048 (4 Megapixels) | Ultra-high pixel resolution |
| Aspect Ratio | 1:1 | Symmetrical square aspect ratio |
| Color Spectrum | Full Color | Deep native black levels & high contrast |
| Luminance Output | 2000 cd/m² | High brightness for optical combiners |
| Video Interface | MIPI C-PHY / D-PHY | High-speed, low-power PHY signaling |
Core Advantages & Features
- 4-Megapixel Symmetrical 1:1 Viewing Canvas
- The 2048×2048 square layout maximizes lens utilization across wide Field-of-View (FOV) Pancake and immersive near-eye optical configurations.
- High-Speed Dual MIPI PHY Flexibility
- Supports both MIPI C-PHY and D-PHY signaling standards, accommodating multi-gigabit data rates while maintaining system pin efficiency and lower thermal output.
- Immersive Spatial Computing Ready
- High pixel density coupled with 2000 cd/m² luminance delivers seamless immersion for high-end mixed reality and professional simulation applications.
Target Applications
- Premium VR / MR Headsets: Wide-FOV Pancake optical assemblies, spatial computing devices, and immersive near-eye display systems.
- Flight & Defense Simulators: High-fidelity flight simulation HMDs, tactical vehicle viewports, and military training helmets.
- Advanced Medical & Research Devices: Precision surgical HUD viewfinders, microscopic image display units, and diagnostic optical instruments.
