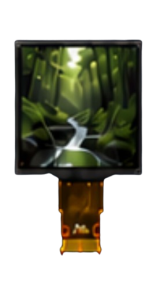

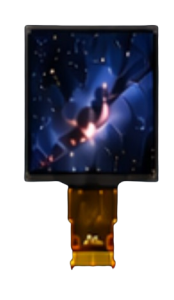

Product Overview (Model: PSMV-DP-009)
PSMV-DP-009 is a high-reliability 0.61-inch XGA full-color silicon-based Micro-OLED (OLEDoS) display engine engineered for high-resolution optical observation and long-distance video transmission. Featuring a 1024 × 768 resolution in a standard 4:3 aspect ratio, its larger active viewport minimizes magnification requirements while maintaining sharp pixel fidelity.
Integrated with a high-noise-immunity LVDS interface, PSMV-DP-009 is built for stable data transfer in electrically noisy or space-separated host board designs. With flexible OEM customization options, it provides a dependable display core for rugged tactical sights, thermal imaging optics, and specialized industrial viewfinders.
Specifications
| Parameter | Specification | Engineering Focus |
| Product Code | PSMV-DP-009 | High-Reliability Platform / Customization Available |
| Display Technology | Micro-OLED Display (OLEDoS) | Single-Crystal Silicon CMOS Architecture |
| Diagonal Size | 0.61 inch | Comfortable viewable aperture for direct optics |
| Resolution | 1024 × 768 (XGA) | High pixel density & text clarity |
| Aspect Ratio | 4:3 | Standard optical viewport format |
| Color Spectrum | Full Color | Deep native black level & rich contrast |
| Video Interface | LVDS | Differential signaling with low EMI |
| Customization | Available | Flex cable (FPC) & structural driver customization |
Core Advantages & Features
- Noise-Tolerant LVDS Interfacing
- Employs Low-Voltage Differential Signaling to ensure low EMI and reliable video transmission across extended cable runs or dense enclosures.
- Comfortable 0.61″ Optical Viewport
- The enlarged 0.61″ active area reduces structural eye-relief demands and allows for lower optical magnification setups without screen-door distortion.
- Robust OEM Customization Flexibility
- Tailor-made pinout arrangements, FPC bending shapes, and customized evaluation hardware to streamline host system integration.
Target Applications
- Tactical & Thermal Scope Viewfinders: Monocular/binocular thermal sights, night vision optical engines, and target acquisition devices.
- Industrial Observation Systems: High-end endoscopic viewports, non-destructive diagnostic devices, and field instruments.
- Rugged Wearable Displays: Smart helmet displays (HMD), defense-grade data overlays, and optical rangefinding terminals.
