PSMV-DP-012 serves as a flagship 0.71-inch Full HD (1080p) silicon-based Micro-OLED (OLEDoS) display source, purpose-built for immersive VR headsets, training simulators, and next-generation Pancake optical modules. Packing a native 1920 × 1080 pixel matrix into a 0.71″ active area, it offers an expansive field-of-view (FOV) canvas with rich visual clarity.
Powered by a high-bandwidth MIPI DSI D-PHY interface with Display Stream Compression (DSC), the PSMV-DP-012 enables seamless high-frame-rate rendering while easing GPU data routing. With dynamically controlled luminance from 50 to 3000+ cd/m², it delivers true blacks and high contrast, making it the primary evaluation and deployment platform for compact Pancake VR optics, smart tactical helmets, and smart firefighter see-through systems.

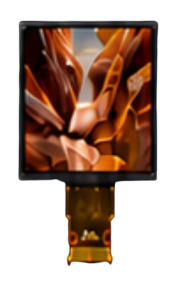

0.71″ Full HD Micro-OLED Module (1920×1080) PSMV-DP-012
Key Technical Specifications
| Parameter | Specification | Engineering Focus |
| Product Code | PSMV-DP-012 | Flagship Key Model / Samples Available |
| Display Technology | Micro-OLED Display (OLEDoS) | Single-Crystal Silicon CMOS Architecture |
| Active Size | 0.71 inch | Wide FOV near-eye display viewport |
| Native Resolution | 1920 × 1080 (Full HD) | High pixel density & crisp details |
| Aspect Ratio | 16:9 | Standard widescreen format |
| Color Spectrum | Full Color | Rich saturation & deep contrast |
| Luminance Range | 50 ~ 3000+ cd/m² | High brightness for optical combiners |
| Video Interface | MIPI DSI D-PHY + DSC | Compressed high-speed video stream |
| Optics Alignment | Pancake & Waveguide Engines | Wide FOV immersive optics validation |
Core Advantages & Features
- Mainstream Pancake Optics Engine
- Engineered to match the optical efficiency and folded light path of Pancake lens assemblies, minimizing optical distortion in compact VR/AR architectures.
- High-Efficiency MIPI DSC Protocol
- Employs Display Stream Compression (DSC) over MIPI DSI D-PHY to sustain uncompressed-quality 1080p video while minimizing interconnect pin counts and power consumption.
- Broad Multi-Domain Compatibility
- Serves as a versatile core display across tactical soldier terminals, firefighter smart helmets, and industrial simulation HMDs.
Target Applications & Systems
- VR & Immersive Near-Eye Displays: Pancake optical modules, compact VR headsets, and flight simulation HMDs.
- Smart Tactical & Firefighter Gear: Smart soldier vision systems, tactical helmet displays, and see-through firefighter HUD overlays.
- Industrial & Thermal Scopes: Thermal imaging combiners, communication viewfinders, and high-resolution diagnostic optics.
Ecosystem & Recommended Test Kits
- Compatible Optical Engines: Waveguide & Pancake Optical Module Series.
- Development & Driver Boards: Fully supported by PSMV-BK-006 and PSMV-BK-008 evaluation kits for immediate optical verification and prototype testing.
