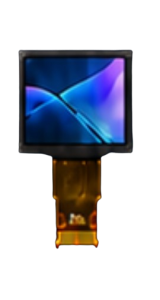

Product Overview (Model: PSMV-DP-003)
PSMV-DP-003 is a compact, high-performance 0.26-inch full-color silicon-based Micro-OLED (OLEDoS) microdisplay module designed for advanced optical and near-eye display applications. Built on a single-crystal silicon CMOS backplane, it integrates the driving circuitry on-chip to achieve an exceptionally small footprint and ultra-low power consumption.
Featuring a native VGA resolution of 640 × 480 in a classic 4:3 aspect ratio, the PSMV-DP-003 delivers vibrant color saturation, high contrast, and microsecond-level response times. Equipped with a standard TTL RGB interface, it allows easy system integration with custom FPGA boards, embedded processors, and optical engine controllers, making it an ideal display source for portable optical instruments and wearable vision systems.
Technical Specifications
| Parameter | Specification | Notes / Description |
| Product Code | PSMV-DP-003 | Full-Color OLEDoS Display Module |
| Display Technology | Silicon-based Micro-OLED (OLEDoS) | Single-crystal CMOS Active Matrix |
| Diagonal Size | 0.26 inch | Compact micro-display format |
| Resolution | 640 × 480 (VGA) | High pixel density |
| Aspect Ratio | 4:3 | Standard aspect ratio |
| Color Mode | Full Color | Rich color reproduction |
| Signal Interface | TTL RGB | Standard embedded display interface |
| Operating Status | Active Production | Commercial & OEM grade |
Features & Technical Advantages
- Vivid Full-Color Display Source
- Integrates sub-micron silicon backplane design with high-efficiency color filters to deliver sharp graphics and high-contrast video output.
- Compact & Lightweight Integration
- Monolithic CMOS driver-on-silicon architecture significantly reduces peripheral circuit space, enabling streamlined optical engine designs.
- Low Power & Instantaneous Response
- Engineered for battery-powered wearable devices, offering microsecond pixel switching speeds to eliminate motion artifacts and ghosting.
- Reliable TTL RGB Compatibility
- Employs standard TTL RGB signaling for straightforward hardware design and fast prototyping across various embedded systems.
Applications
- Augmented Reality (AR) & Smart Glasses: Micro-display engines, transparent HUD combiners, and smart eyewear.
- Thermal & Night Vision Optics: Thermal imaging viewfinders, monocular sights, and tactical vision equipment.
- Industrial & Wearable Terminals: Portable diagnostic instrumentation, helmet-mounted displays (HMD), and optical rangefinders.
