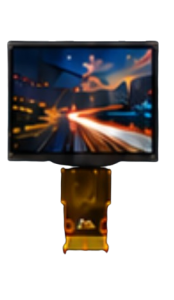

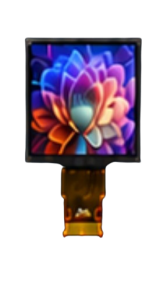

Product Overview (Model: PSMV-DP-004)
PSMV-DP-004 stands as a field-proven, highly reliable 0.39-inch XGA full-color silicon-based Micro-OLED (OLEDoS) microdisplay module, purpose-built for high-clarity optical observation platforms. By combining an active-matrix single-crystal silicon CMOS backplane with vibrant color-emission technology, it yields a dense 1024 × 768 resolution in a natural 4:3 view format.
Engineered to bridge high-resolution imaging with effortless system integration, the PSMV-DP-004 delivers exceptional brightness control spanning 50 to over 3000 cd/m², paired with rich 24-bit RGB888 / YCbCr422 video input processing. Its standardized TTL RGB interface provides hardware stability for rapid OEM deployment, making it the benchmark micro-display core for demanding tactical optics, thermal viewfinders, handheld diagnostic devices, and soldier-mounted observation terminals.
Key Technical Specifications
| Parameter | Specification | Technical Details |
| Model Code | PSMV-DP-004 | Key Model / Samples Available |
| Display Platform | Silicon-based Micro-OLED (OLEDoS) | Active Matrix Single-Crystal CMOS |
| Diagonal Size | 0.39 inch | Standardized observation eyepiece format |
| Resolution | 1024 × 768 (XGA) | Ultra-high pixel density |
| Aspect Ratio | 4:3 | Optimized for direct-view optical scopes |
| Color Depth & Processing | Full Color (24-bit RGB888 / 16-bit YCbCr422) | High-fidelity color accuracy |
| Dynamic Brightness | 50 ~ 3000+ cd/m² | Wide dynamic range for day & night optics |
| Video Signal Interface | TTL RGB | Reliable digital video transmission |
| Target Optics Compatibility | Observation Lens Group (Lens Assemblies) | Direct-view eyepieces & optical combiners |
Engineering Advantages
- Proven Commercial & Tactical Reliability
- Acts as a mature, field-tested microdisplay core, offering low deployment risk and fast-track integration for commercial and tactical observation products.
- Crisp XGA Imagery with Dynamic Brightness Control
- Delivers sharp 1024×768 detail with smooth brightness scaling (50 to 3000+ cd/m²), maintaining high contrast and target legibility across variable ambient lighting conditions.
- Versatile Video Input & Native 24-Bit Color
- Supports flexible RGB888 and YCbCr422 data streams, allowing direct handshake with thermal cores, image processing FPGAs, and video signal processors.
- Instantaneous Pixel Response
- Offers microsecond-level switching speeds to eliminate motion blur during rapid panning, tracking, or handheld target scanning.
Applications
- Tactical Sights & Night Vision Devices: Monocular and binocular thermal viewfinders, night vision goggles (NVG), and tactical target acquisition optics.
- Industrial & Field Observation Eyepieces: Portable inspection scopes, optical instruments, handheld thermal imagers, and wearable diagnostic viewfinders.
- Smart Soldier & Positioning Systems: Helmet-mounted information displays (HMD), soldier-level command terminals, laser rangefinders, and positioning scopes.
Recommended Evaluation Kit
- Compatible Optical Engines: Observation Eyepiece Lens Group Series.
- Hardware Development Kit: Fully supported by PSMV-BK-006 and PSMV-BK-008 evaluation driver boards for immediate optical testing and prototype validation.
